Art.nr: LZ-EV05

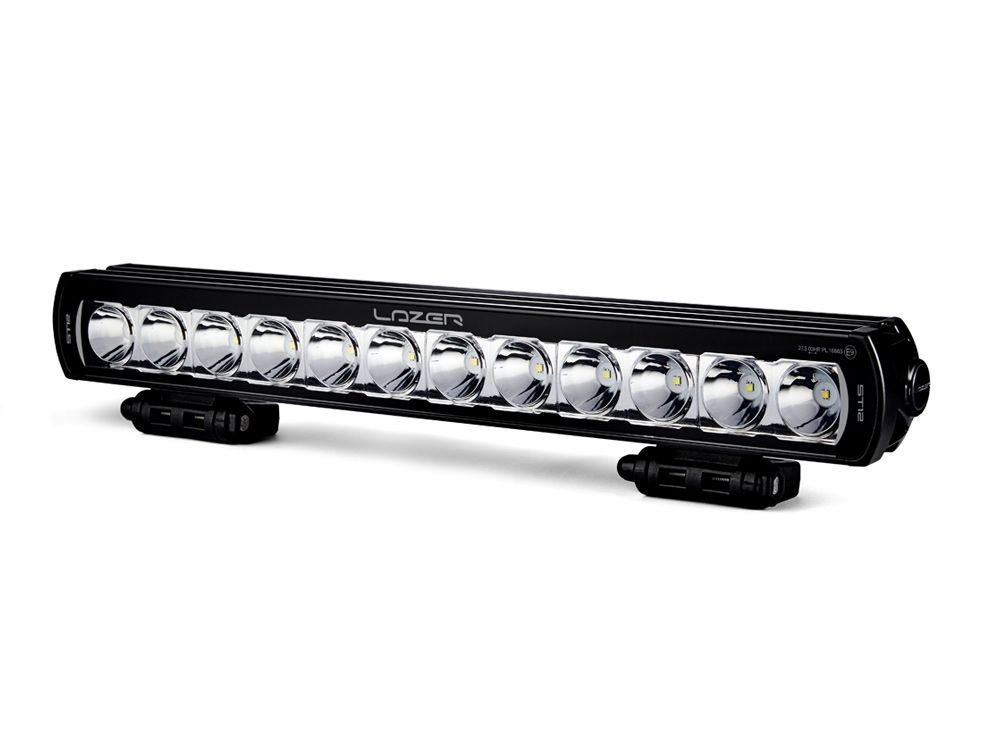

Lazer ST12 Evolution extra light ramp 21″ (524 mm)

761,30 EUR incl VAT

Delivery within 4-7 days (Available on back-order)

20% ON ALL CONVERSION KITS
TO THE PRODUCTS
00
DAYS
00
HOURS
00
MINUTES
00
SECONDS
  • Fast deliveries
  • Secure payments
  • Right of cancellation 30 days
Product information
Size mm 524x68x64
LED Chips Power W 144
Colour temperature 5000K
Moisture protection value (IPXX) IP68
Light image Driving
Volt (V) Multi-voltage, 10, 12, 16, 18, 24, 28, 30, 32
Power consumption 10A@14.4V
Lamp cap / Contact Superseal
Authorisation E-approved, ECE, R112

    Full product information

    Lazer ST Evolution – Optimal LED ramps for your vehicles

    The Lazer ST Evolution series is an impressive range of LED ramps that were first launched in 2010 and have since undergone continuous development and updates. These ramps offer a low-profile and seamless design, improved weather resistance, easy installation and the latest lighting technology to create an optimal ramp to suit most vehicles and situations.

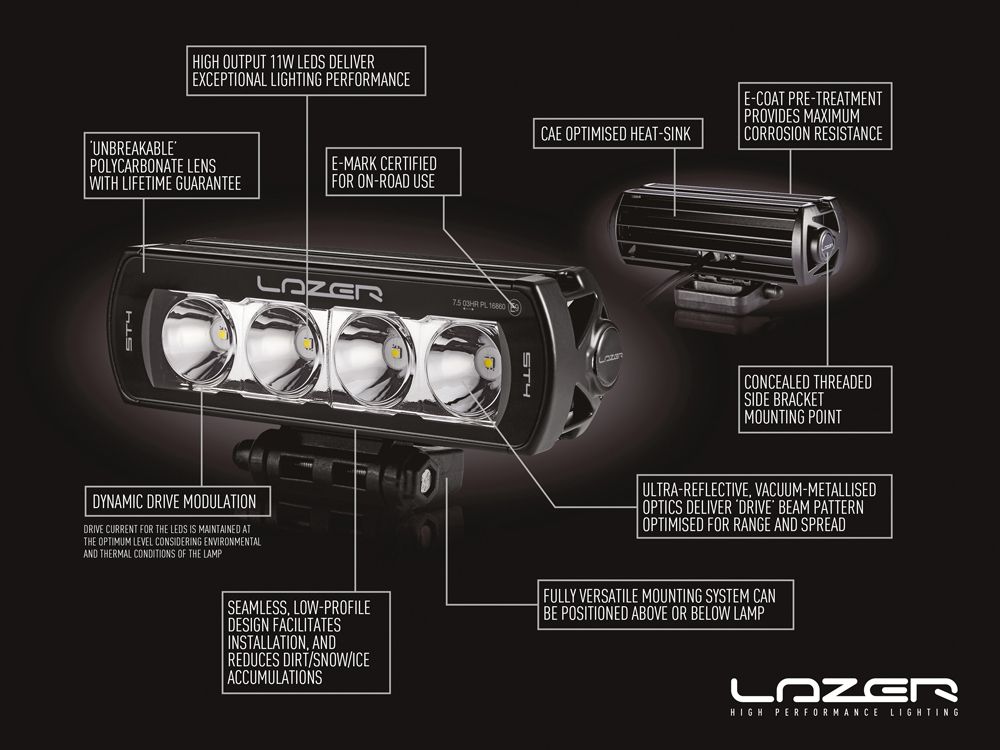

    Each boom in the ST Evolution series is equipped with high-performance 11W LED lamps that deliver superior light performance and spread exactly where you need it. Using advanced electronic design and efficient vacuum metallized reflectors, a wide light pattern is created that is particularly suitable for agricultural and off-road driving where lower speeds are common. The boom’s thermal management system ensures that overheating is avoided, and the “unbreakable” polycarbonate lens treated with hard lacquer effectively reduces the risk of snow and dirt sticking to the glass.

    The ST Evolution range of ramps is available in eight different lengths between 124 and 1164 mm. With a height of 68 mm and depth of 64 mm, you can be sure to find a length that fits your vehicle perfectly. To further customise your lighting solution, you can also combine multiple ramps of different lengths to achieve the desired effect.

    With Lazer ST Evolution you get reliable and powerful LED beacons that deliver superior light performance and light dispersion. Designed to meet the demands of various automotive applications, these beacons offer a combination of durability, efficiency and impressive visibility. Equip your vehicle with ST Evolution and experience the best in lighting technology to meet your needs and exceed your expectations.

    • LED: 12 x LED
    • Theoretical Lumen: 12408 lm
    • Volt: 10-32V
    • Power: 144W
    • Power consumption: 10A @14.4V

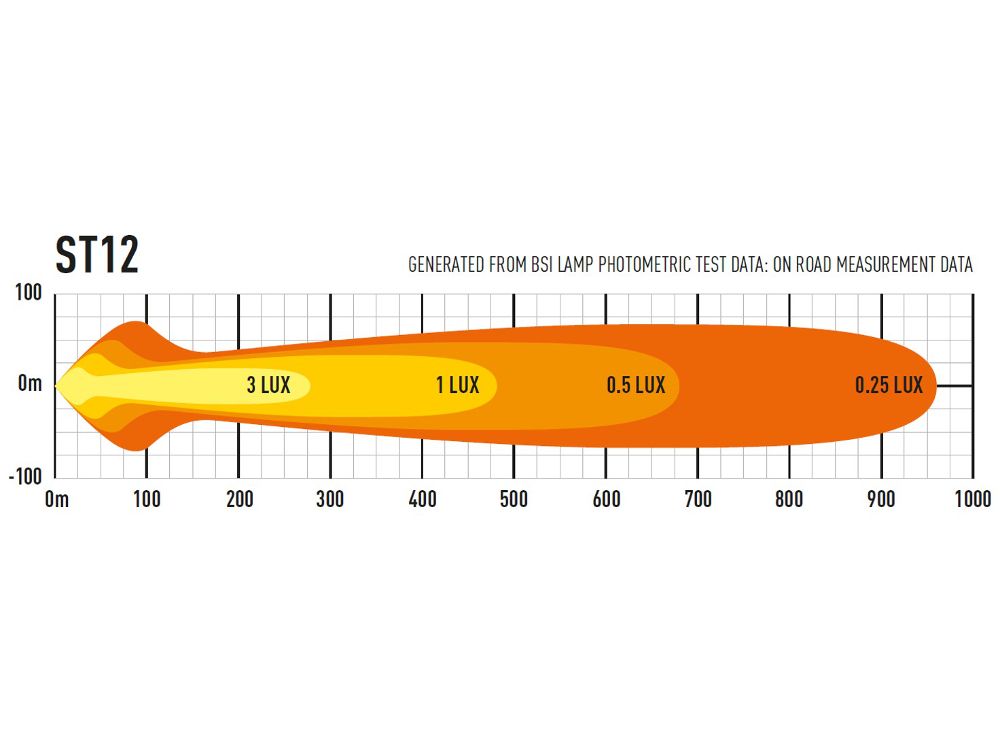

    • Range: 1 lux @ 481 m
    • Colour temperature: 5000K
    • Certificate: E-approved (R112)
    • Moisture protection: IP68
    • Slideshow: Driving

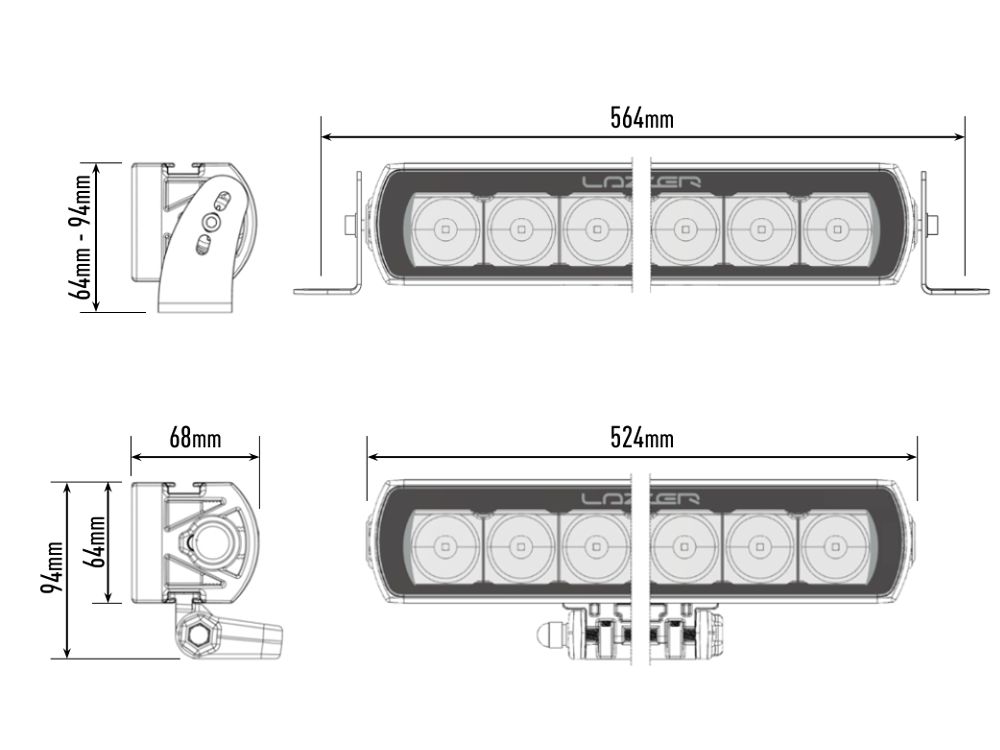

    • Dimensions (LxWxH): 524x68x64 mm
    • Weight: 1,634 kg
    • Contact: Superseal
    • Warranty: 5 years
