Strobe Controller for 12 Volt LED Lighting

With an impactful triple flash pattern a strobe effect is created with three quick flashes, followed by a short pause, which is then repeated continuously.

Perfect to link to LED strips, LED lights, side markings, position lights and LED auxiliary light position lights. Improve visibility and use as a warning light or flashing light!

Strobe Controller is designed for all lamps with a maximum power of 20 W. It converts a fixed light source into a flashing warning/flashing light. The controller is easily connected between the power source and the light source. When the power is switched on, the controller adjusts the power to create a smooth and clear triple flash effect.

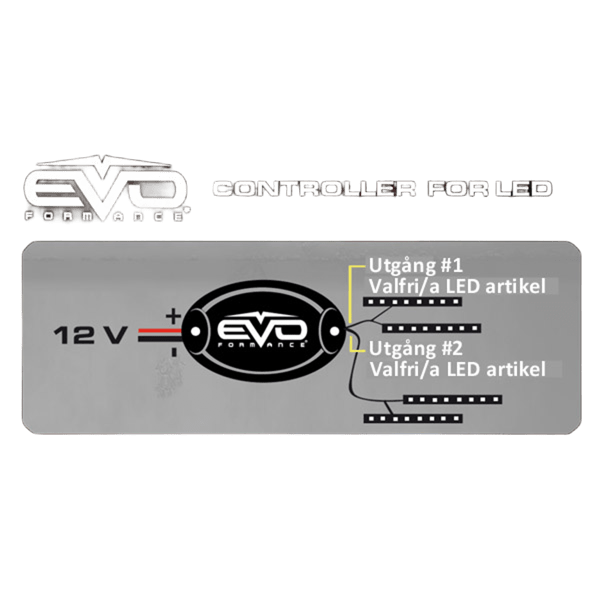

Connectivity:

The Strobe Controller is connected between the power source (for example a battery) and the light source.

• On one side of the controller there is a red and a black cable which is connected to the plus or minus of the power source.
• On the other side there is a black and a black/white cable which connects to the power cables of the light source.

Note! The output of the controller can be shared between several light sources using distribution cables, splitters or Wago clamps. Maximum load is 20 W.

Important: The controller has an IP22 rating and should therefore be mounted in a location that is protected from water and moisture.
