V-Sight warning light control unit

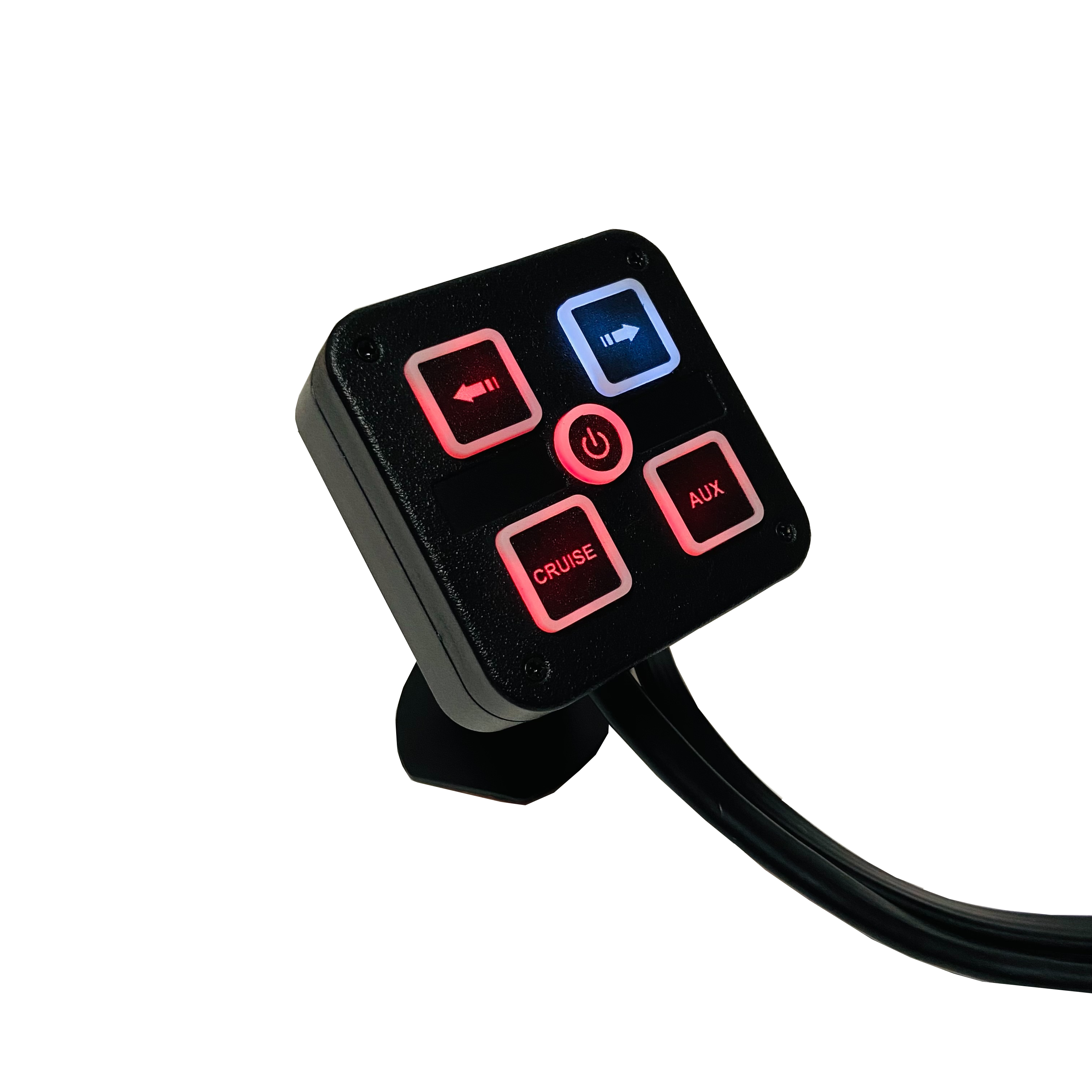

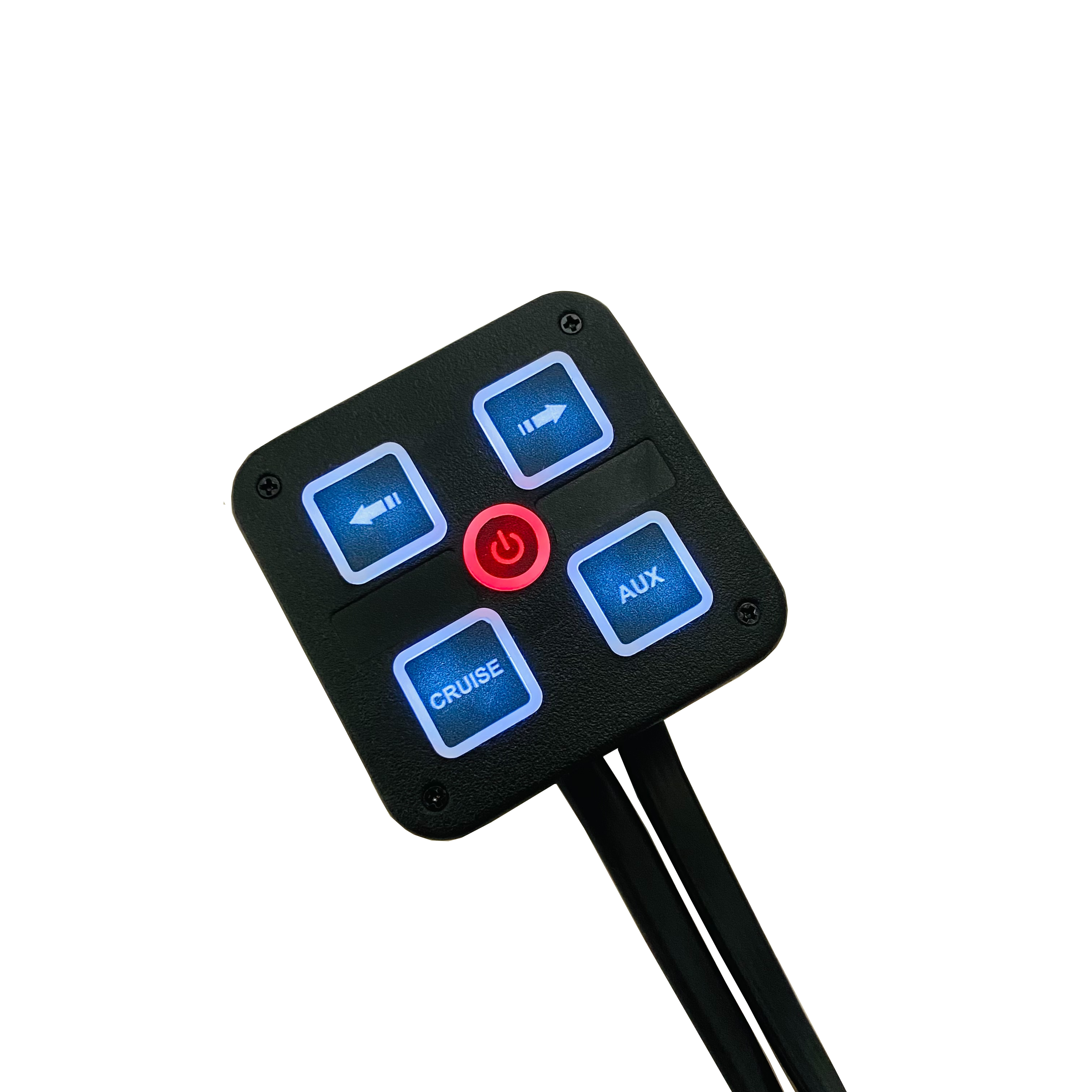

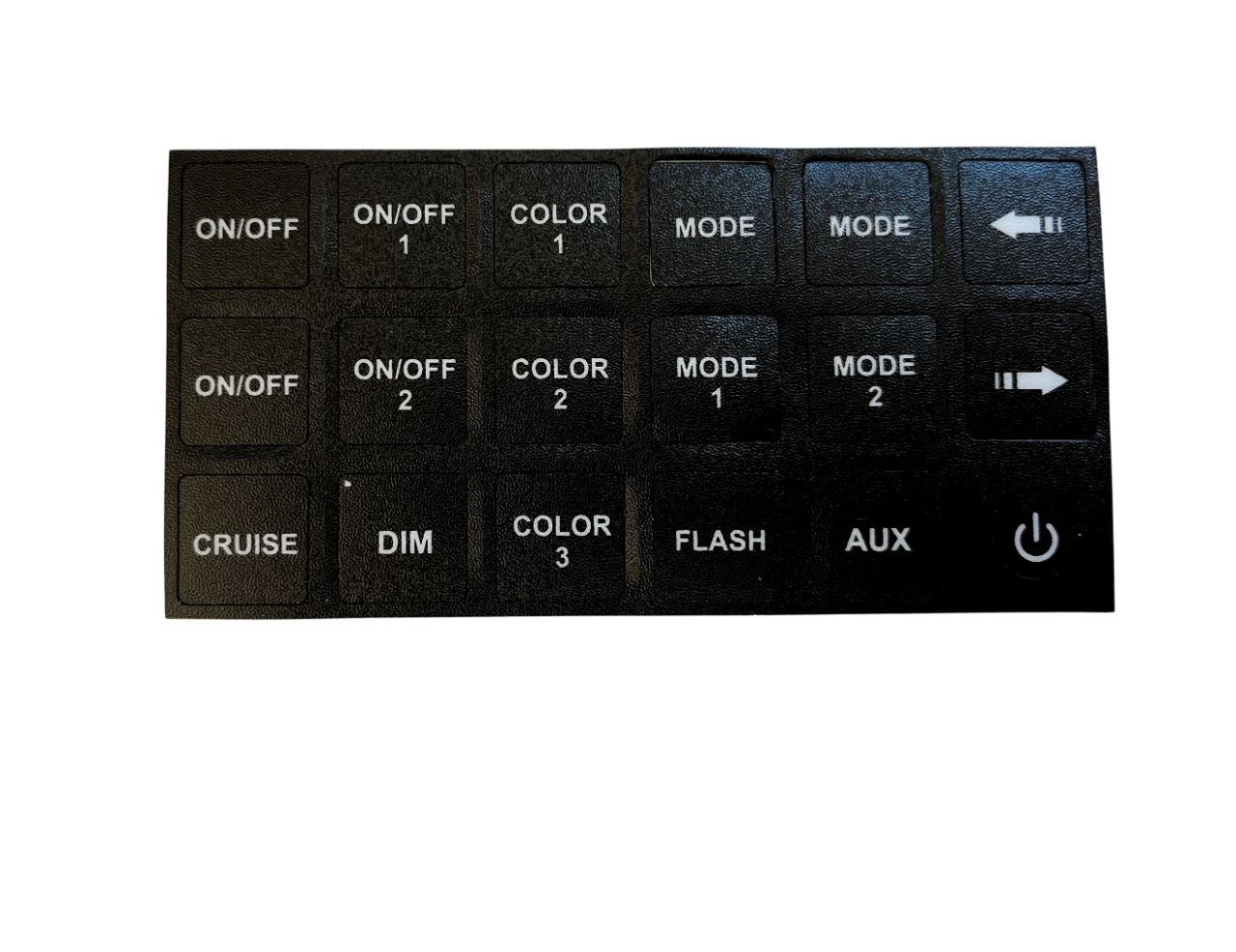

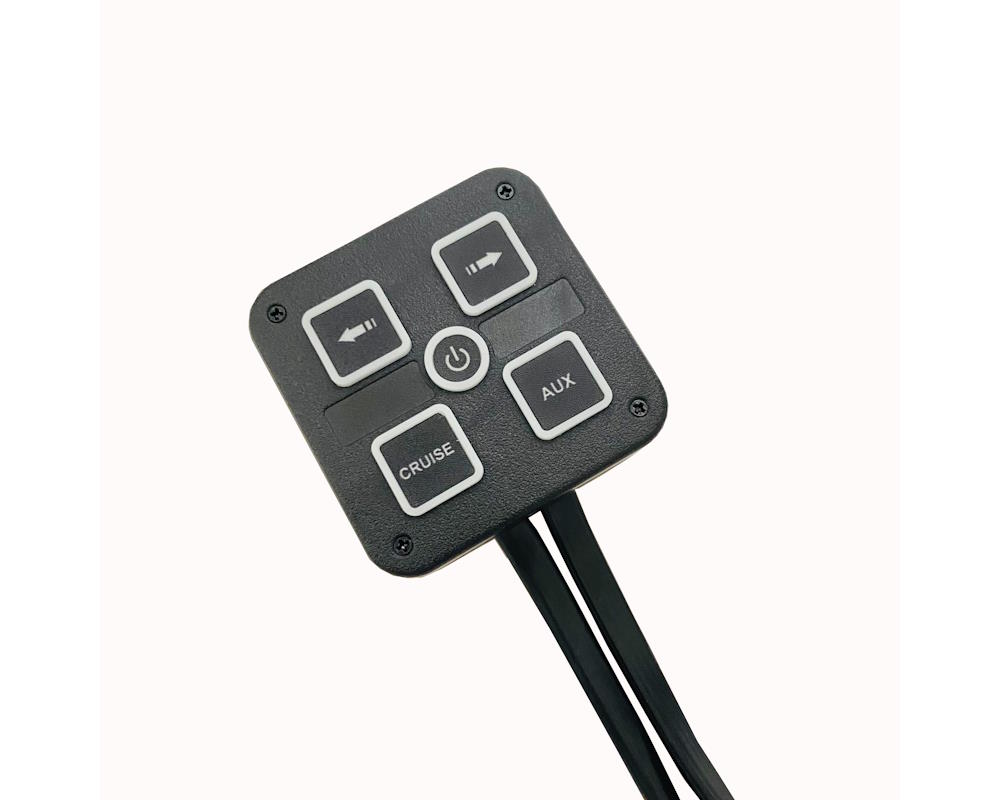

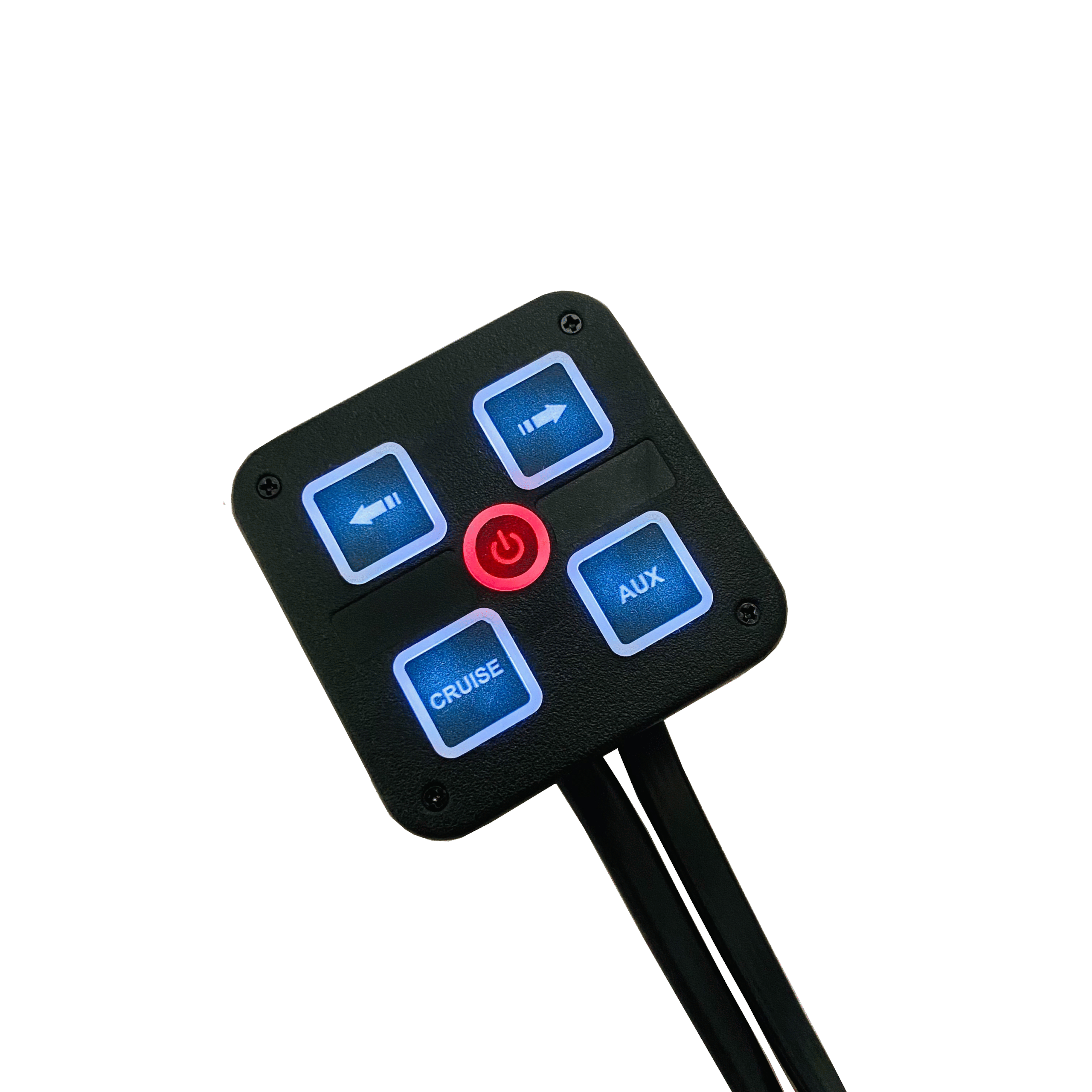

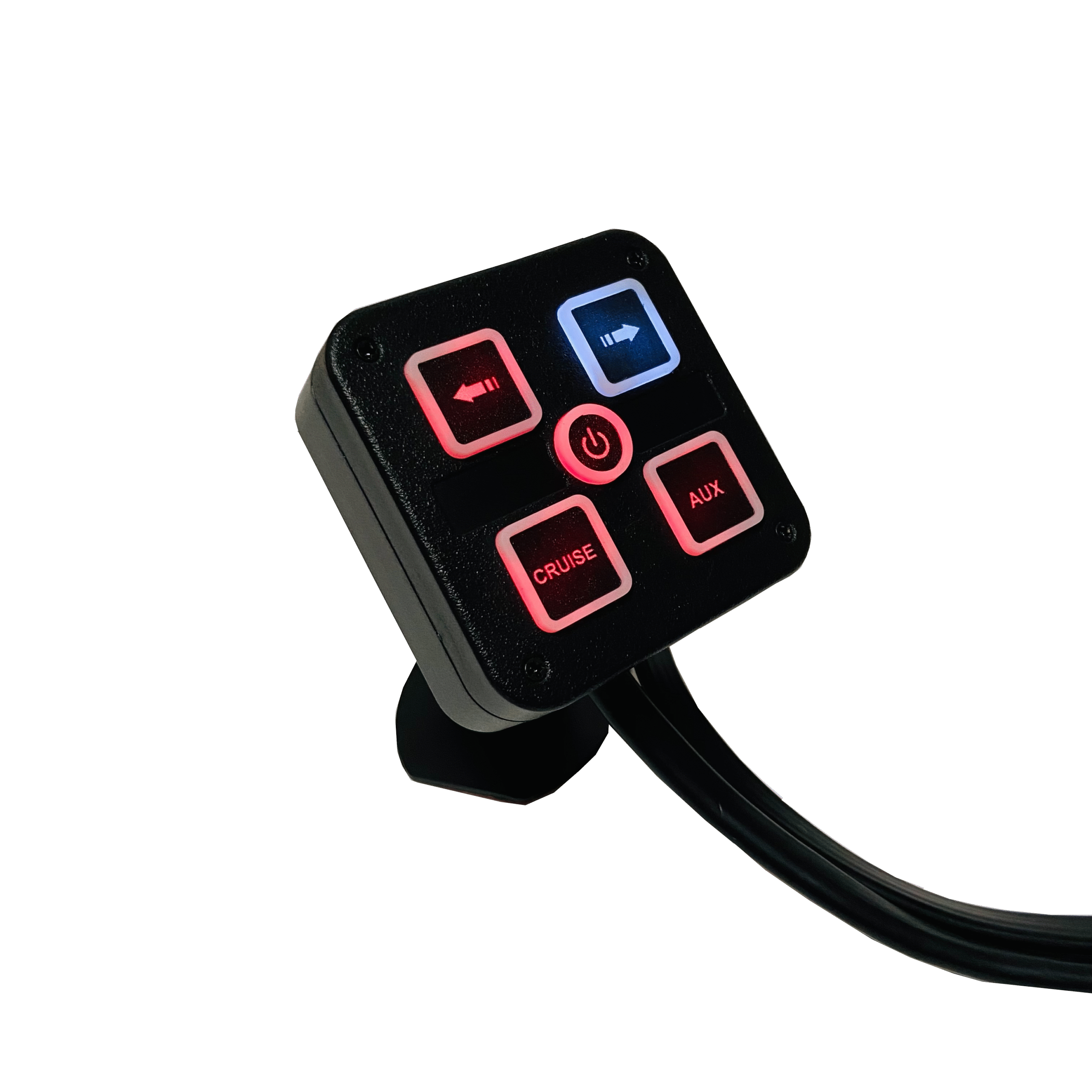

The V-Sight warning and work light controller, part number V50-181, offers efficient control over various light sources. This compact control panel includes 4 on/off switches for easy management of lights such as flashing lights, work lights and LED light bars. Each switch is illuminated and can be individually programmed, with accompanying symbol sheets for customisation. The product has a voltage range of 10-30V, a maximum current of 20A, dimensions of 62 x 62 x 25 mm and 4 outputs with a cable length of 80 mm. It comes with double-sided mounting tape (3M), fuse holder and symbol stickers.

The PDF file provided contains further information on wiring and programming functions. It includes a wiring diagram with details of connections for input voltage and the four output channels. The device supports input voltages of 10-30V and includes a ground connection. The PDF highlights programming mode, including instructions for setting a locked mode and a master/slave setting for the switches, allowing customisation of the switch functions. It also mentions mounting options, including 3M double-sided tape and screw fixing with a 1/4" thread, providing flexibility in mounting the controller.
