Lumen grill kit Tesla Model Y Juniper Performance

What is included in the Lumen grill kit for Tesla Model Y Juniper Performance?

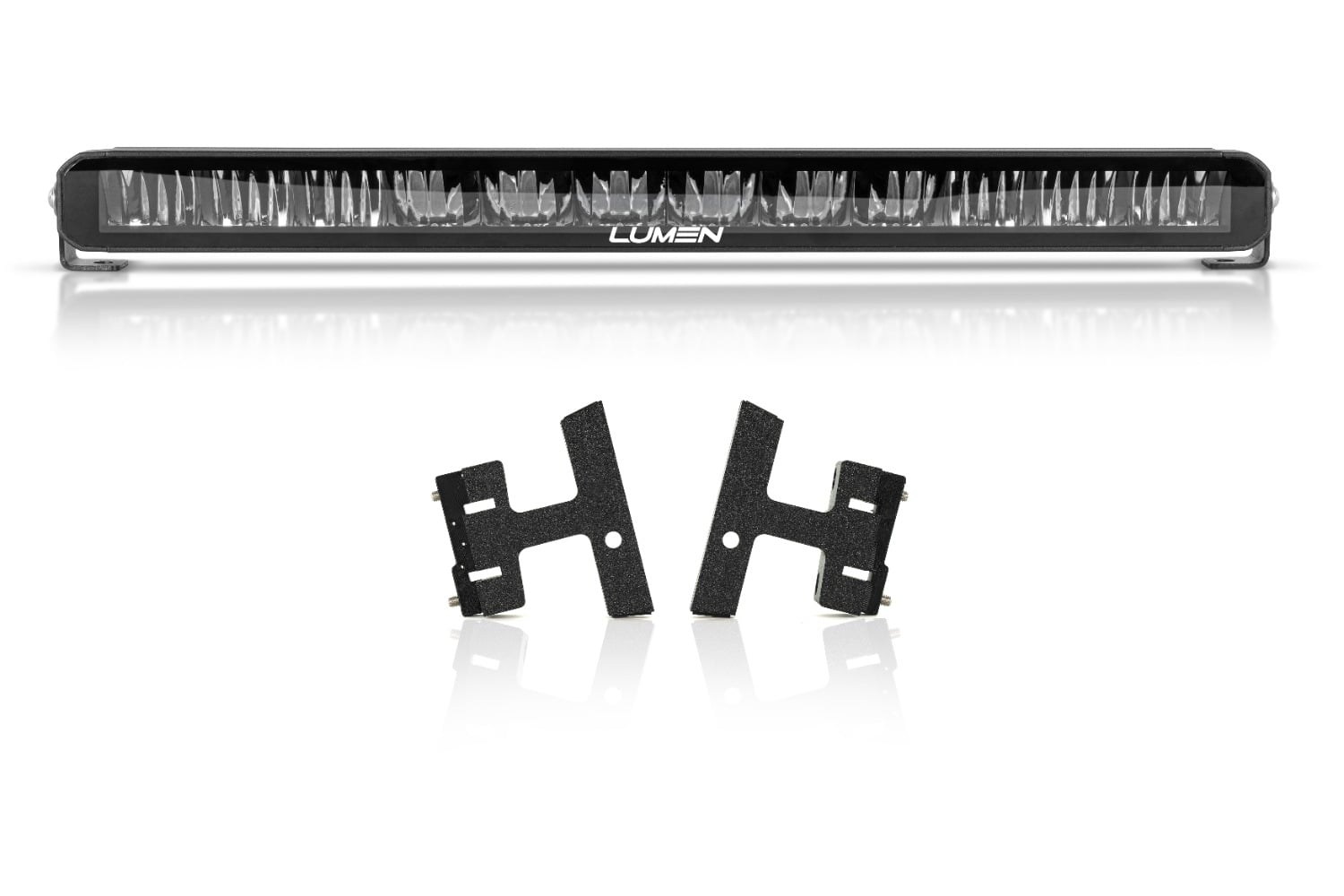

The package includes everything you need for installation. You get 2 brackets for the lower grill, 1 Lumen Performance CS20 and complete installation instructions. To operate the lamp you also need the Lumen relay kit 14730 and ALC for control current, which are ordered separately.

Does the grill kit fit your Tesla Model Y Juniper?

This kit fits the Tesla Model Y Juniper with performance grille. If you have a Juniper with standard grille, choose instead Lumen grill kit Tesla Model Y Juniper. Please check which grill your car has before ordering.

How do you assemble the grill kit?

You mount the grill kit without intervention in the car's chassis. The brackets are model-specific and sit in the lower grill, which provides a discreet installation that can be removed without visible traces. The bracket is designed so that the LED ramp does not obscure the car's front camera.

What kind of light does the Lumen Performance CS20 provide?

The Lumen Performance CS20 delivers 22,984 lumens with a range of 976 meters (0.25 lux) and 488 meters (1 lux). The light pattern combines long range with width and is adapted to Nordic conditions. The frameless design makes the ramp easy to keep clean from snow and dirt.

How does ALC control work?

ALC is connected plug and play to the car's original connector. The LED ramp automatically follows the car's high beams and works with adaptive high beams (matrix). In fog or snowfall, deactivate the ramp by flashing the horn 6 times while driving, without taking your eyes off the road.

What warranty applies?

The mounts are designed and manufactured in Lindesnes, Norway, with a 5-year warranty.

Frequently asked questions

Does the Juniper kit fit a standard grill?

No. This kit is designed for Juniper with performance grill. For standard grill, select Lumen grill kit Tesla Model Y Juniper.

Do I need to buy anything else for the lamp to work?

Yes. You need Lumen relay kit 14730 and ALC to connect control current. Both are ordered separately.

Does the installation affect the car's front camera?

No. The mount is designed so that the LED bar does not get in the way of the front camera.
