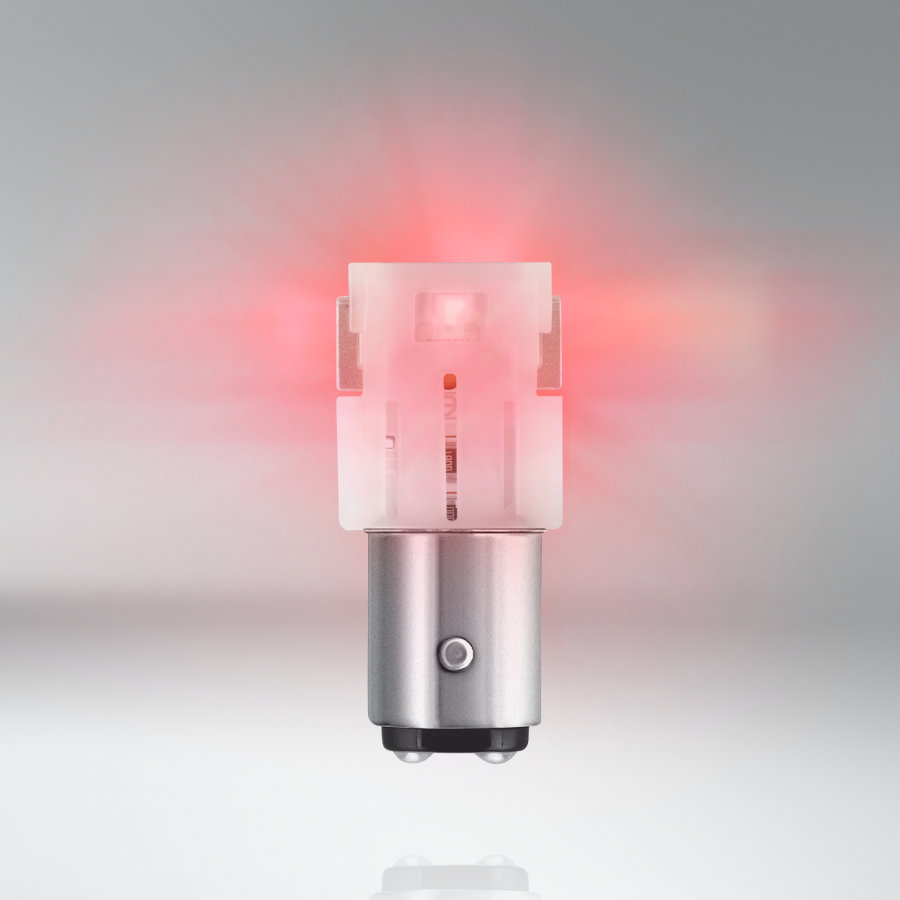

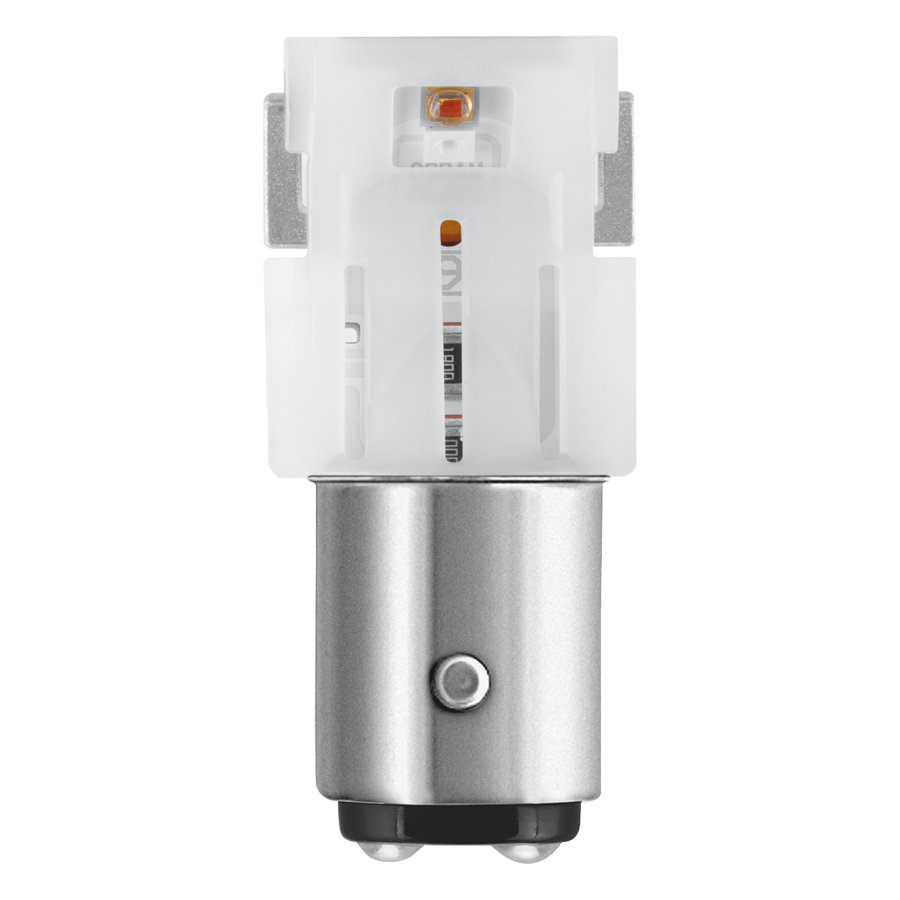

LEDriving® LED lamp SL P21/5W | Red

Suitable LED replacement lamp for P21/5W | BAY15D

LEDriving SL P21/5W replacement lamps offer a modern and intense light. These replacement lamps fit all conventional P21/5W lamp bases.

Compared to regular lamps, these LED replacement lamps consume up to 80 % less energy. OSRAM provides a 4-year guarantee on these LEDriving SL lamps.

These products are not ECE-approved and must not be used on public roads in exterior applications.

Electrical data:
- Maximum power: 1.61 / 0.575 W
- Nominal rated voltage: 12.0 V
- Rated wattage: 1.40/0.40 W
- Power consumption tolerance: ±25 %
- Test voltage in volts: 13.5 V

Photometric data:
- Luminous flux: 100/10 lm
- Luminous flux, tolerance: ±10 %
- LED light colour: Red

Dimensions:
- Diameter: 27.0 mm
- Product weight: 16.00 g
- Length: 52.5 mm

Life expectancy:
- Lifetime B3: 1500 h
- Lifetime Tc in hours: 4000 h
- Warranty: 4 years

Supplementary product data:
– Sockel: BAY15d
