Art.nr: OS-LEDDL110CB

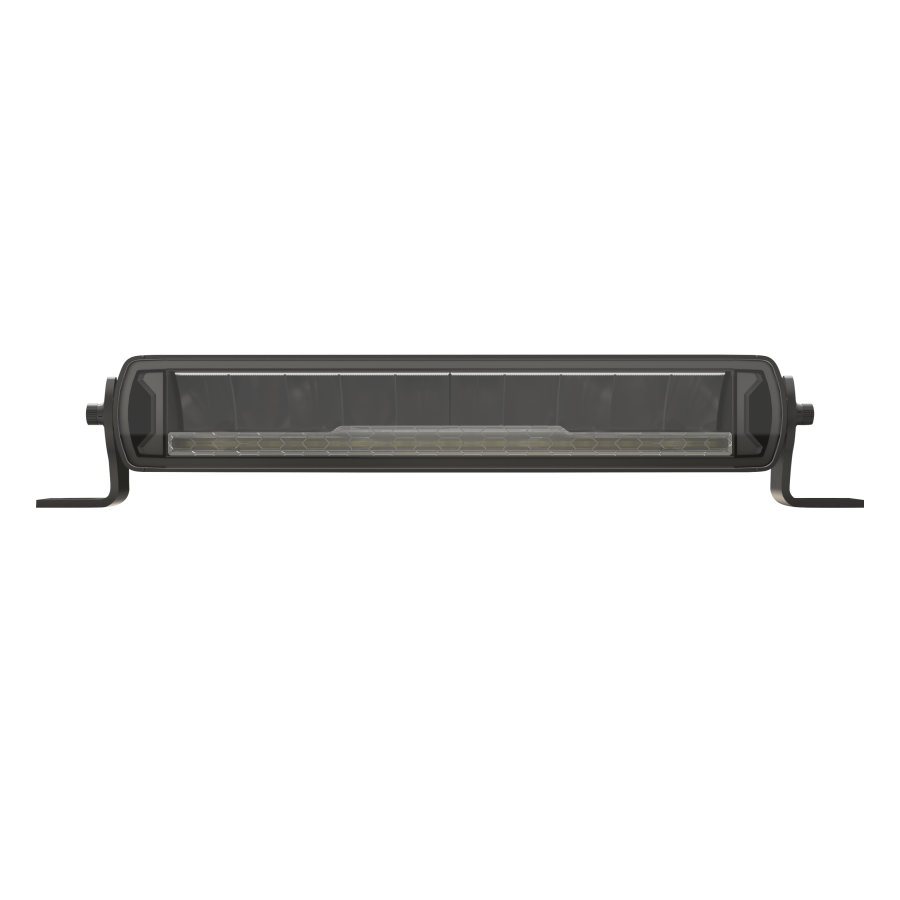

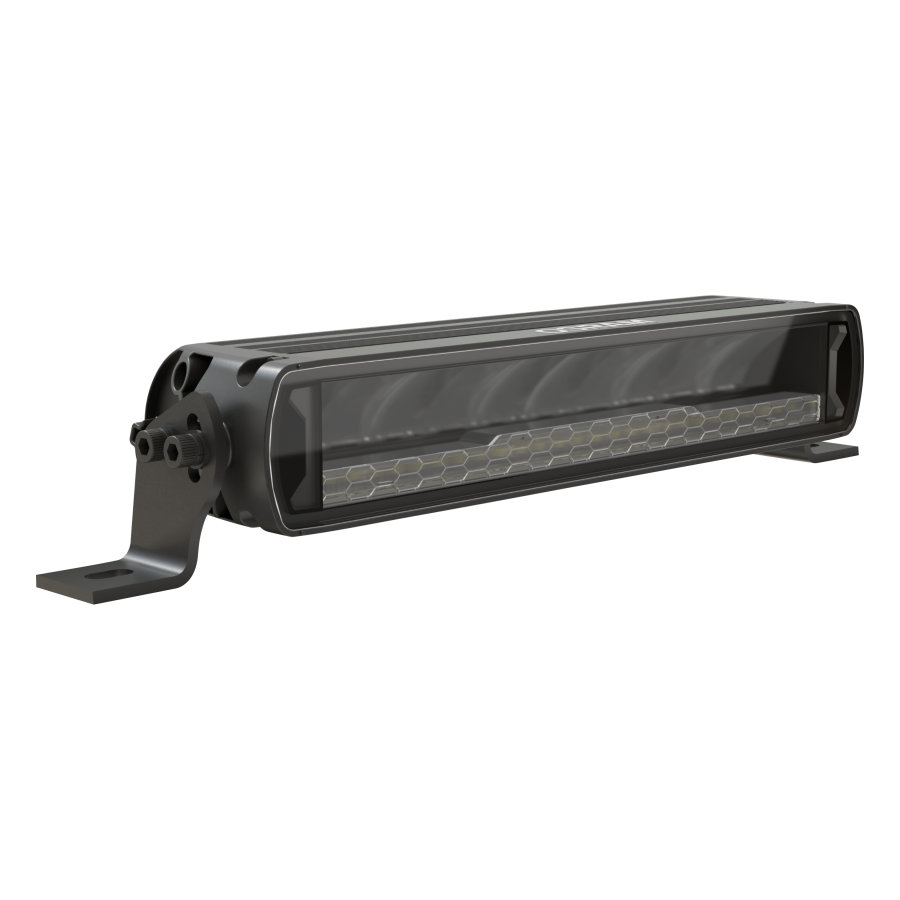

LEDriving® LEDramp MX250-CB | Position light <39cm>

277,25 EUR incl VAT

Snygg smidig Ledramp från Osram med Positionsljus!

Read more

Order before 12:00 and we'll send it the same day!

  • Fast deliveries
  • Secure payments
  • Right of cancellation 30 days
Product information
Size mm 86x54x356
Actual Power Consumption 45
Colour temperature 6000
Moisture protection value (IPXX) IP69K
Volt (V) 12, 24
Lamp cap / Contact Open Wire
Authorisation E4 , ECE R10 , R112 , R7

Full product information

Light up your life with OSRAM LEDriving Ledramp

The OSRAM LEDriving Lightbar MX250-CB illuminates dark country roads and forest tracks. With 26 powerful and high-performance long-life LEDs, the OSRAM LEDriving Lightbar MX250-CB has a range of up to 320 metres and gives the driver plenty of warning both on the road and off-road. Even in low light conditions, the OSRAM LEDriving Lightbar MX250-CB provides a daylight-like environment thanks to a colour temperature of up to 6,000 Kelvin. The intense luminous flux of up to 2,700 lumens is combined with very high optical efficiency and uniform light distribution. This allows you to see better and your vehicle to be more easily perceived by other road users, contributing to higher road safety both on the road and off-road.

The OSRAM LEDriving Lightbar MX250-CB impresses with its powerful performance and long lifetime of up to 5,000 hours. The versatile light can withstand harsh environmental conditions thanks to its high-quality materials, such as an aluminium housing and a robust polycarbonate lens, and is both lightweight and robust. The OSRAM LEDriving Lightbar MX250-CB has been tested in our DIN-certified environmental simulation lab for extreme external conditions such as water, dust, shock, high and low temperatures and permanent vibrations and validated with the IP69K protection class. An integrated drive unit and a thermal management system regulate the LED Lightbar's temperature and prevent damage caused by overheating. Polarity protection prevents incorrect polarity in the power supply and prevents potential damage by automatically switching off the LEDs.

On the road or off-road?
The OSRAM LEDriving Lightbar MX250-CB is an effective upgrade for your vehicle. The ECE-certified LED driving lights require no re-registration and no additions to the vehicle documentation.
ECE reference number: 30

The OSRAM LEDriving Lightbar MX250-CB can be mounted on cars, trucks, agricultural machinery, utility vehicles, construction vehicles, forestry machinery, caravans, off-road vehicles and quad bikes.
The OSRAM LEDriving Lightbar MX250-CB is versatile and flexible.

OSRAM LEDriving auxiliary lights are ECE approved and can therefore be installed and then used on public roads.
NB: Special assembly rules apply. In addition to ECE approval, individual special requirements and legislation in individual countries must be observed.

Specification

Product information:
Application (category and product specific): Extra high beam and position light

Electrical data:
Nominal rated voltage: 12/24 V
Nominell watttal: 45/1 W
Test voltage in volts: 13.5 V

Photometric data:
Ljusflöde: 2700 lm
Colour temperature: 6000 K
Ljusavstånd vid 1 lx: 320 m

Dimensions:
Bredd: 86 mm
Höjd: 54 mm
Längd: 356 mm
Vikt: 2000 g

Life expectancy:
Lifetime Tc in hours: 5000 h

Connectivity:
Open cables

Certificates and Standards:
Moisture protection: IP69
Approved: E4, ECE R10, R112, R7

Guarantee:
5 years
